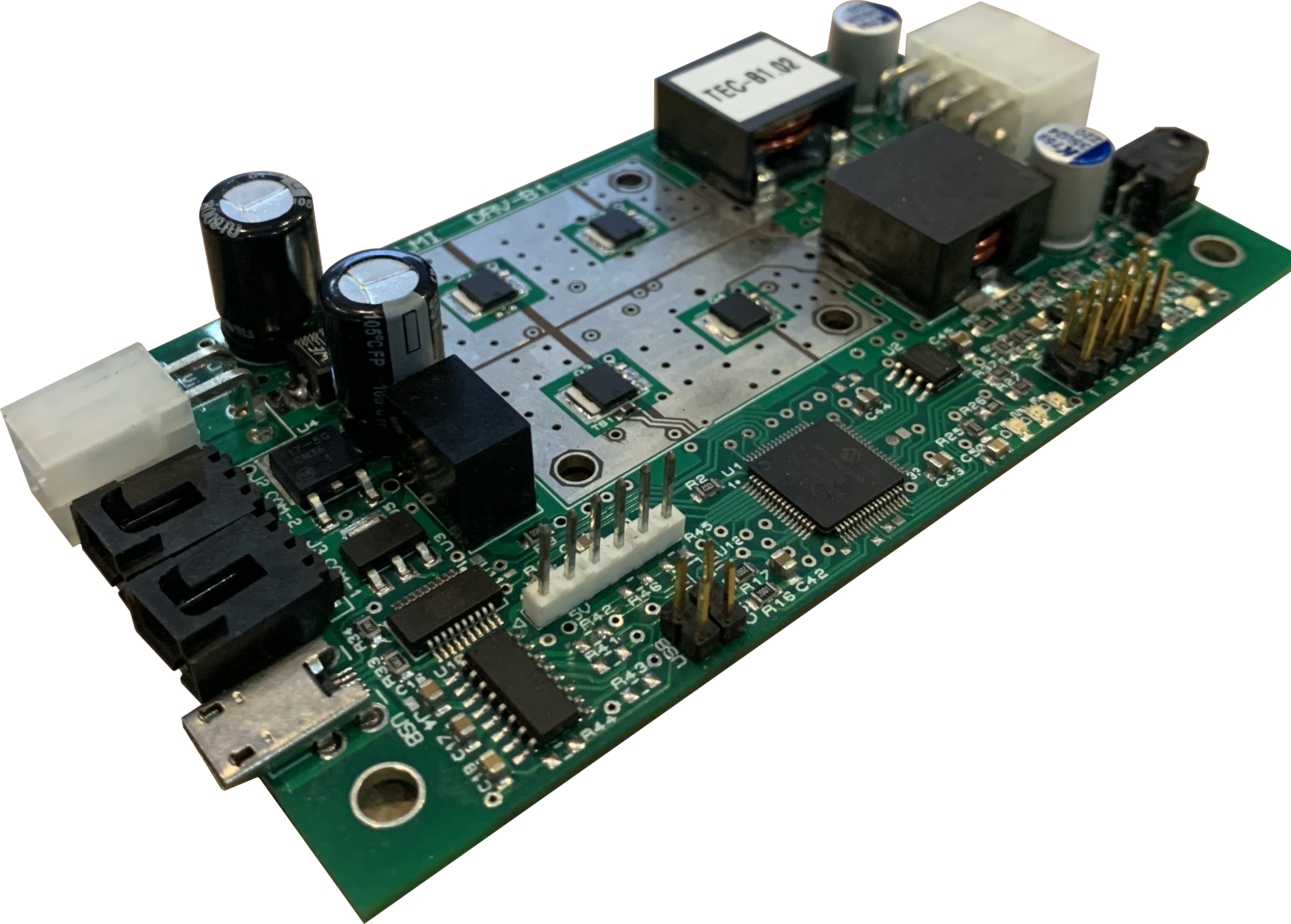

TCW1525 Digital Temperature Controller
Open frame digital temperature controller for thermoelectric coolers (TECs) and resistive heaters.
Description
The TCW-1525 is a current driver designed to control the temperature of thermal systems. Includes a user interface with tools for controlling, monitoring and calibration. It is fully controllable and configurable through a USB digital interface and has analog I/O for monitoring and control.
Key Features
- Configured as a temperature controller
- Bipolar output current up to ±15A
- Micro USB or USB C digital communication
- Intuitive User Interface with auto calibration support
- Input port supports NTC and RTD temperature sensors
- Supports daisy chaining with up to 8 other controllers
- Recommended fan cooling for average currents above 5A
Typical Applications
- High accuracy temperature control for large thermal systems
Technical Specification
| Output Current | ±15 A |
|---|---|
| Output Voltage | ±24 V and Vin - 1 V |
| Ripple Frequency | > 300 kHz |
| Control | Analog or Digital |
| Dimensions | 115mm x 64mm x 15mm |
| Operating Temperature | 0 to 55 °C |
For detailed drawings, tolerances, or integration questions, email
sales@flashphotonics.com
and a short description of your application.
